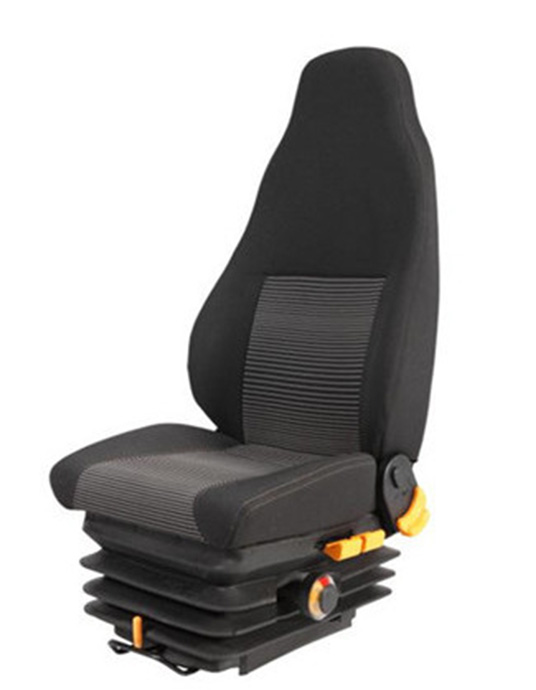

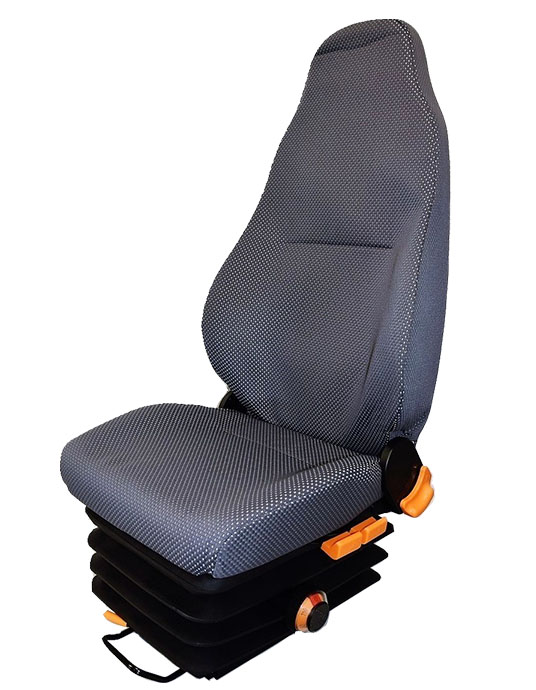

T911-52 ISRI6000 STYLE Integrated headrest structure

Suspension:

Mechanical suspension system

Application: Truck/Bus

Options: Headrest/Armrest/Safety belt/Mechanical Lumbar

SKU: T23 Categories: Mechanical Suspension Seat, Truck seat

Description

Description

Features

Horizontal adjustment with double locking tracks
Weight adjustment up to 130KG
Height / rake adjustable
Backrest adjustable
Integrated headrest structure
Suspension cover
Suspension lock
All control handles can be made in left or right side

Specification

Horizontal adjustment: stroke 200mm (10mmx20)
Weight adjustment: adjust range 40 ~ 130Kg
Mechanical suspension function: stroke ±30mm
Height / rake adjustment: adjust range ±60mm,7 step adjustable
Backrest adjustment: adjust range 80°＋41°
Seat size（length x height x width） 570 mmx1090 mmx485mm
Connect size（L/RxF/B）216 mmx295.5 mm
