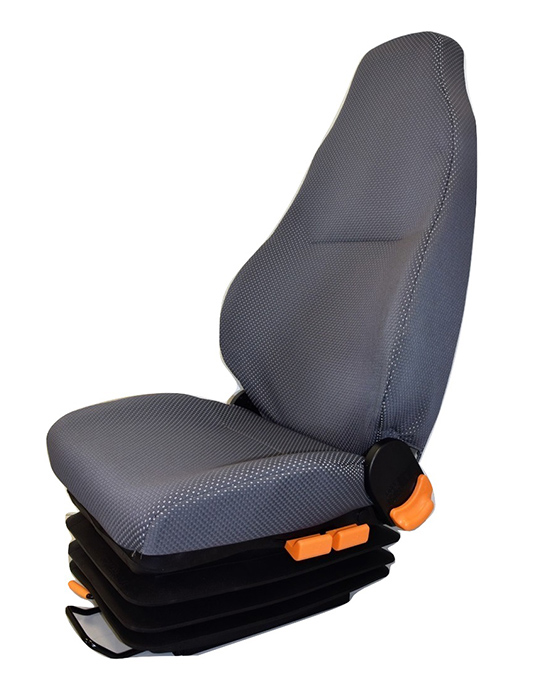

Features
Horizontal adjustment with double locking tracks
Connects to vehicle air supply
Weight adjustment up to 130KG
Height / rake adjustable
Backrest adjustable
Suspension cover
Suspension lock
Integrated headrest structure
All control handles can be made in left or right side
Specification
Horizontal adjustment: stroke 200mm (10mmx20)
Weight adjustment: Automated up to 130kg (40~130kg), air pressure 0.3~0.7Mpa (air pressure of supply 0.7~0.9Mpa)
Pneumatic suspension function: stroke ±40mm
Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°;
Backrest adjustment: adjust range 80°+41°
Head restraint adjustment: adjust range 75mm (25mmx3)
Seat size(length x height x width) 560mmx1050mmx485mm
Seat cushion height(work state)225mm, seat cushion width 485mm, seat cushion depth 465mm
Backrest height 630mm, backrest width 480mm
Connect size(L/RxF/B)216mmx295.5m
