Specification

Horizontal adjustment: stroke 200mm (10mmx20)

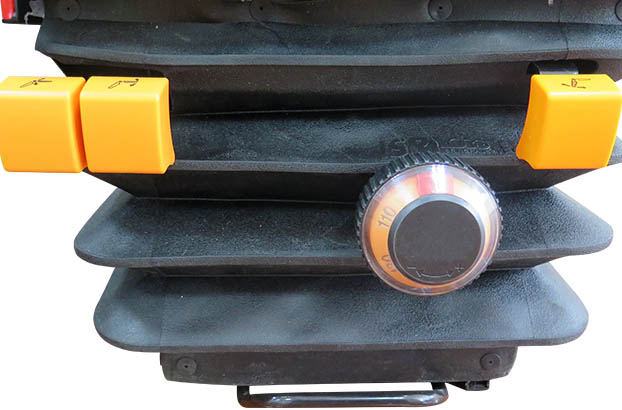

Weight adjustment: adjust range 40 ~ 130Kg
Mechanical suspension function: stroke ±30mm
Height / rake adjustment: adjust range ±60mm, rake adjustable ±12°;

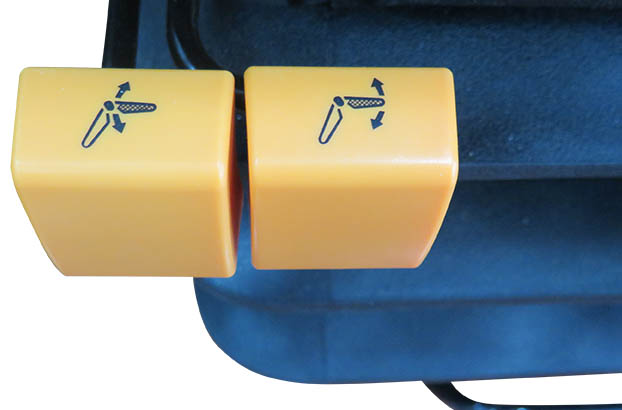

Backrest adjustment: adjust range 80°＋41°
Head restraint adjustment: adjust range 75mm (25mmx3)
Seat size（length x height x width） 570 mmx1105 mmx485mm
Seat cushion height（work state）255 mm, seat cushion width 485 mm seat cushion depth 465 mm
Backrest height 630 mm, backrest width 480 mm
Connect size（L/RxF/B）216 mmx295.5 mm
