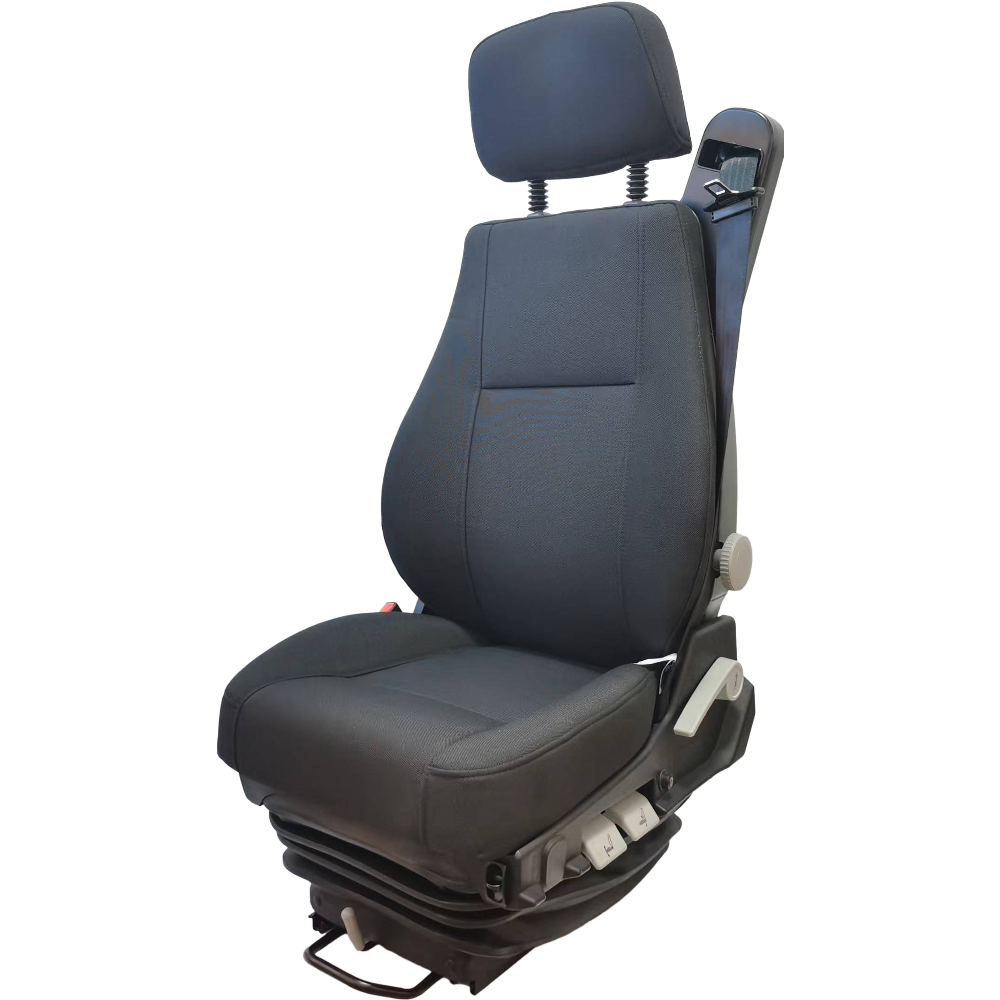

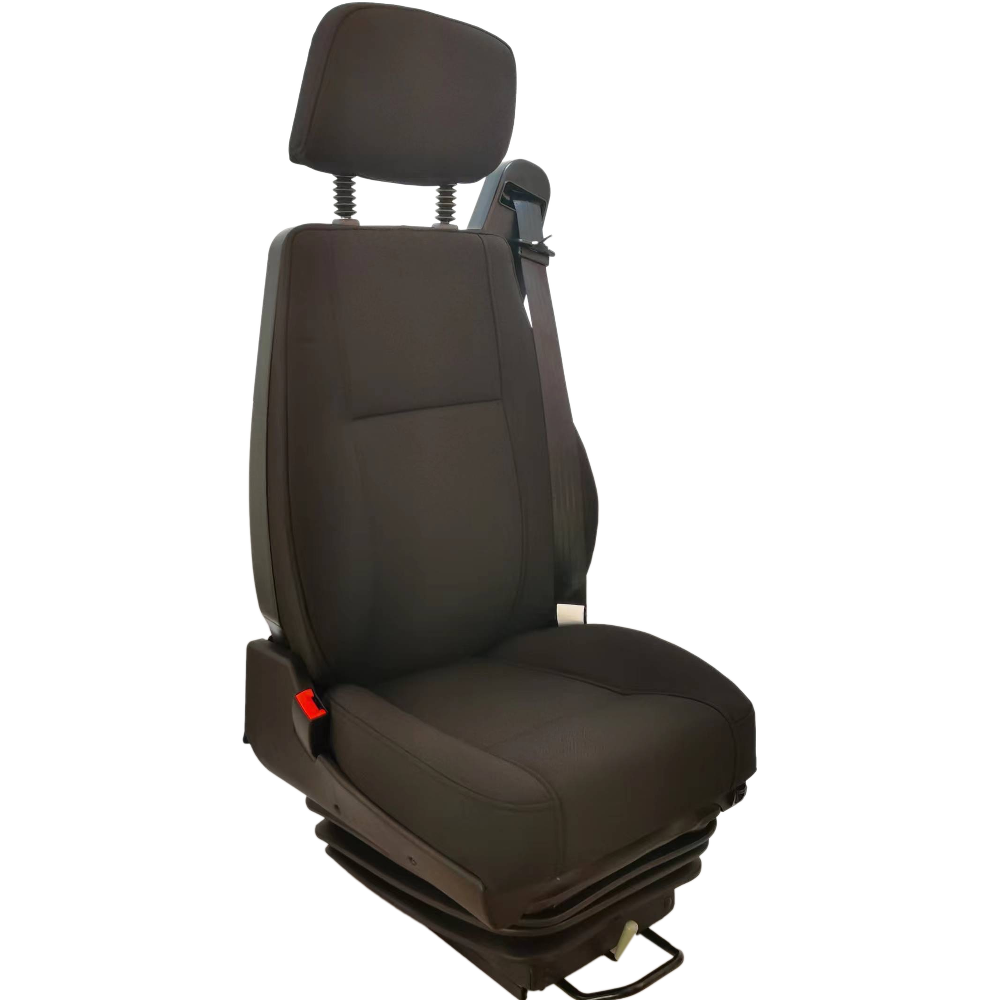

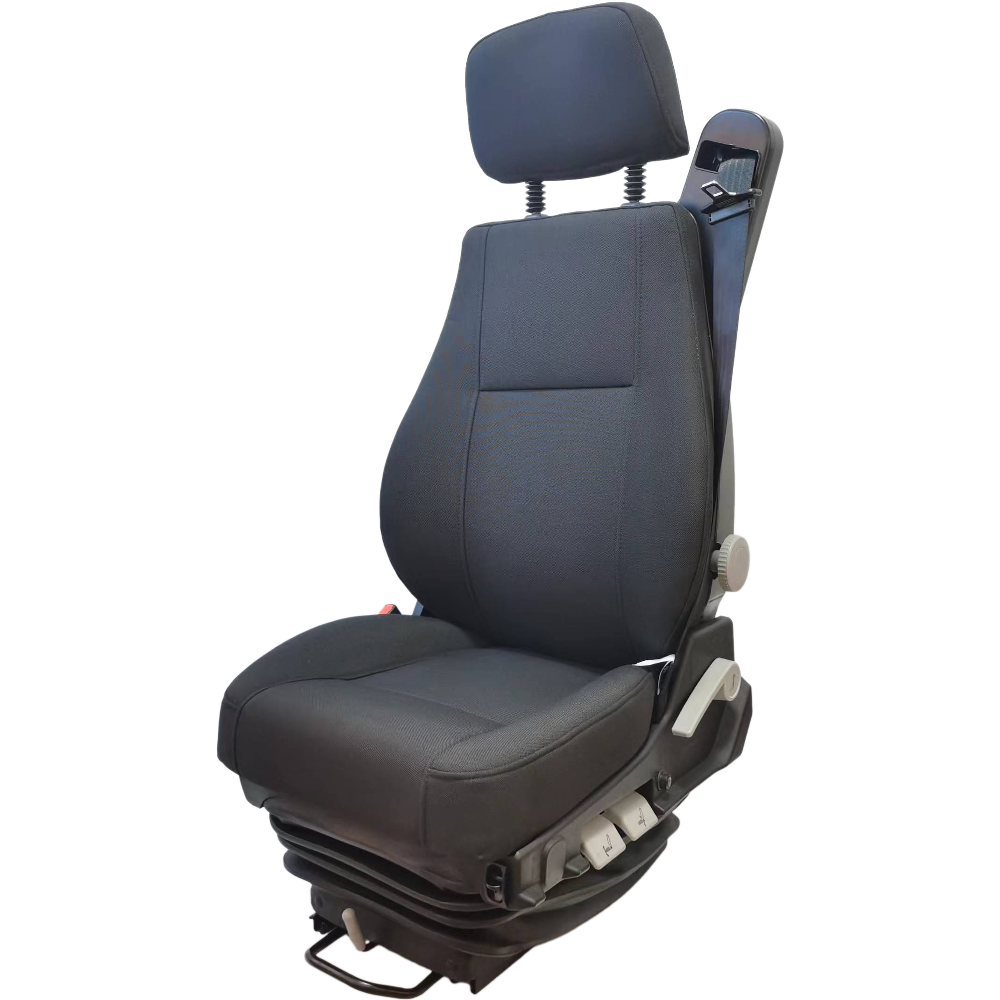

Features
Horizontal adjustment with double locking tracks
Weight adjustment up to 130KG
Height / rake adjustable
Backrest adjustable
Suspension cover
Suspension lock
Integrated with 3 point safety belt
Integrated with seat air compressor
Mainly used for Mining vehicle/Special vehicle
Specification
Horizontal adjustment: stroke 200mm (10mmx20)
Weight adjustment: Automated up to 130kg (40~130kg),
Pneumatic suspension function: stroke ±40mm
Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°;
Backrest adjustment: adjust range 80°+41°
Head restraint adjustment: adjust range 75mm (25mmx3)
Seat size(length x height x width) 550mmx1080mmx500mm
Seat cushion height(work state)245mm, seat cushion width 485mm, seat cushion depth 465mm
Backrest height 630mm, backrest width 480mm
Connect size(L/RxF/B)216 mmx295.5mm
Integrated with seat air compressor
Integrated with 3 point safety belt
